LinearSOESolver Class Reference#include <LinearSOESolver.h>

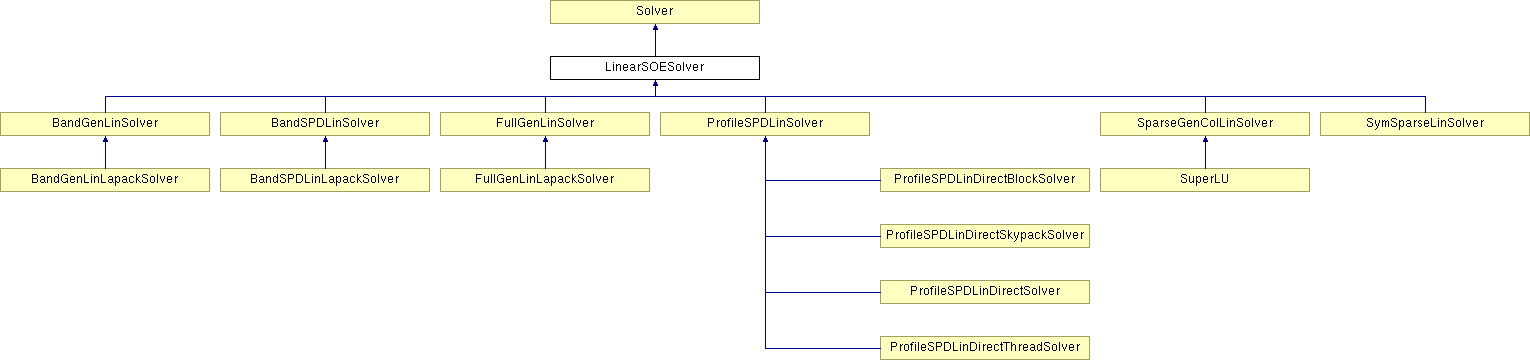

Inheritance diagram for LinearSOESolver::
List of all members.
Detailed Description
LinearSOESolver is an abstract class. A LinearSOESolver object is responsible for solving the LinearSOE object that it is associated with. That is, to find
such that the matrix equation
is satisfied. \
{\bf Interface} \ {// Constructor} \ {LinearSOESolver(int classTag);} \ \ {// Destructor} \ {virtual~
LinearSOESolver();}\ \ {// Public Methods } \ {virtual int solve(void) =0;} \ {virtual int setSize(void) =0;} \
{\bf Constructor} \ {LinearSOESolver(int classTag);} \ The integer {classTag} is passed to the Solver. \
{\bf Destructor} \ {virtual~
LinearSOESolver();}\ Does nothing. Provided so the subclasses destructor will be called. \
{\bf Public Methods } \ {virtual int solve(void) =0;} \ Causes the LinearSOESolver to solve the system of equations
for
. Returns
if successful , negative number if not; the actual value depending on the type of LinearSOESolver. The result of the solve are to be stored in the
vector of the LinearSOE by the object.\
{virtual int setSize(void) =0;} \ This is invoked by the {LinearSOE} object when {setSize()} has been invoked on it. Solvers may sometimes need to store additional data that needs to be updated if the size of the system of equation changes. \
Definition at line 88 of file LinearSOESolver.h.
Constructor & Destructor Documentation
|
LinearSOESolver::LinearSOESolver (
|
int classTag )
|
|
|
LinearSOESolver::~LinearSOESolver (
|
) [virtual]
|
|
Member Function Documentation
|
double LinearSOESolver::getDeterminant (
|
void ) [inline, virtual]
|
|
|
int LinearSOESolver::setSize (
|
void ) [pure virtual]
|
|
|
|
virtual int setLinearSOE(LinearSOE &theSOE) =0;.
Reimplemented in BandGenLinLapackSolver, BandSPDLinLapackSolver, FullGenLinLapackSolver, ProfileSPDLinDirectBlockSolver, ProfileSPDLinDirectSkypackSolver, ProfileSPDLinDirectSolver, ProfileSPDLinDirectThreadSolver, SuperLU, and SymSparseLinSolver.
Referenced by BandGenLinSOE::setBandGenSolver(), BandSPDLinSOE::setBandSPDSolver(), FullGenLinSOE::setFullGenSolver(), ProfileSPDLinSOE::setProfileSPDSolver(), SparseGenColLinSOE::setSize(), ProfileSPDLinSOE::setSize(), FullGenLinSOE::setSize(), BandSPDLinSOE::setSize(), BandGenLinSOE::setSize(), and SparseGenColLinSOE::setSparseGenColSolver().
|
|
int LinearSOESolver::solve (
|
void ) [pure virtual]
|
|
|
|
Reimplemented in BandGenLinLapackSolver, BandGenLinSolver, BandSPDLinLapackSolver, BandSPDLinSolver, FullGenLinLapackSolver, ProfileSPDLinDirectBlockSolver, ProfileSPDLinDirectSkypackSolver, ProfileSPDLinDirectSolver, ProfileSPDLinDirectThreadSolver, ProfileSPDLinSolver, SuperLU, and SymSparseLinSolver.
Referenced by LinearSOE::solve().
|
The documentation for this class was generated from the following files:
|
