Velocity Dependent Friction

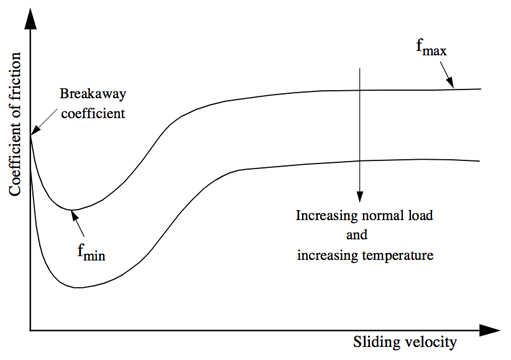

This command is used to construct a VelDependent friction model object. It is useful for modeling the behavior of "PTFE" or PTFE-like materials sliding on a stainless steel surface. For a detailed presentation on the velocity dependence of such interfaces please refer to Constantinou et al. (1999).
| frictionModel VelDependent $frnTag $muSlow $muFast $transRate |
| $frnTag | unique friction model object tag |
| $muSlow | coefficient of friction at low velocity |
| $muFast | coefficient of friction at high velocity |
| $transRate | transition rate from low to high velocity |
<math>\[\mu = {\mu _{fast}} - \left( {{\mu _{fast}} - {\mu _{slow}}} \right) \cdot {e^{ - transRate\, \cdot \,\left| v \right|}}\]</math>
EXAMPLE:

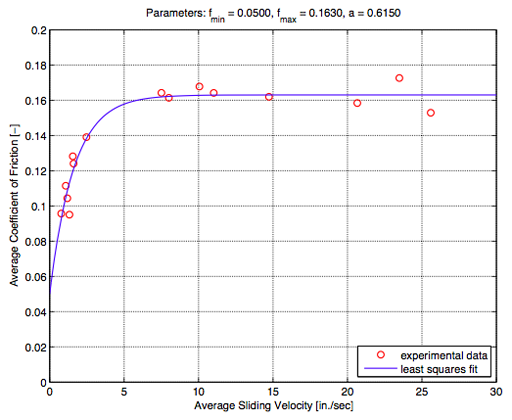

frictionModel VelDependent 1 0.05 0.163 0.615
REFERENCE:
Constantinou, M.C., Tsopelas, P., Kasalanati, A., and Wolff, E.D. (1999). “Property modification factors for seismic isolation bearings”. Report MCEER-99-0012, Multidisciplinary Center for Earthquake Engineering Research, State University of New York.
RELATED TO:
- Flat Slider Bearing Element
- Single Friction Pendulum Bearing Element
- Triple Friction Pendulum Bearing Element
Code Developed by: Andreas Schellenberg, University of California, Berkeley.
