FatigueMaterialExample.tcl

# Run an example script to test the fatigue material model

## Define model and loads

model BasicBuilder -ndm 2 -ndf 2

node 1 0.0 0.0

node 2 0.0 0.0

fix 1 1 1

fix 2 0 1

uniaxialMaterial Steel01 1 60.0 29800.0 0.003

uniaxialMaterial Fatigue 2 1

element zeroLength 1 1 2 -mat 2 -dir 1

pattern Plain 1 "Linear" {

# nd FX

load 2 1.0 0.0 0.0

}

## Recorders

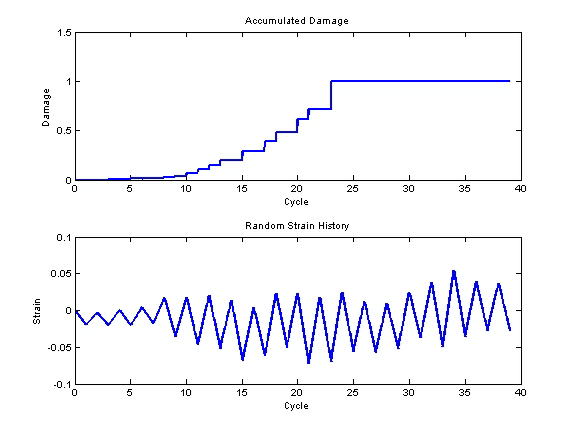

recorder Element -file "Damage.out" -time -ele 1 material 1 damage

recorder Element -file "StressStrain.out" \

-time -ele 1 material 1 stressANDstrain

## Set analysis parameters

test EnergyIncr 1.0e-8 200 0

algorithm Newton

system UmfPack

numberer RCM

constraints Plain

analysis Static

## Source the displacement history, and initialize analysis parameters

#source RandomStrainHstory1.tcl

source RandomStrainHstory2.tcl

set LoopLength [array size disp]

set h 1

set controlNode 2

set currentDisp [nodeDisp $controlNode 1 ]

puts [format " \n STARTING DISPLACEMENT = %5.3f \n" $currentDisp]

## Run the static cyclic analysis

while {$h < $LoopLength} {

set controlNodeDisp [nodeDisp $controlNode 1 ]

set dU [expr (1.8*($disp($h) - $controlNodeDisp))/100.0]

integrator DisplacementControl $controlNode 1 $dU 1 $dU $dU

set ok [ analyze 100]

set h [expr $h + 1 ]

}
