This command creates a RectangularSeries TimeSeries object and associates it to the LoadPattern object being constructed.
Rectangular $tStart $tFinish <-factor $cFactor>
$tStart |
start time when the load factor is applied |
$tFinish |
end time when the load factor is applied |
$cFactor |
load-factor coefficient. (optional. default = 1.0) |

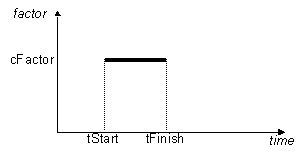

The load factor to be applied to the loads and constraints in the LoadPattern object is constant and equal to $cFactor during the domain time from $tStart to $tFinish
|
|
|
