This command is used to construct a uniaxial bilinear steel material object with kinematic hardening and optional isotropic hardening described by a non-linear evolution equation (REF: Fedeas).
uniaxialMaterial Steel01 $matTag $Fy $E0 $b <$a1 $a2 $a3 $a4>
$matTag |
unique material object integer tag |
|
$Fy |
yield strength |
|
$E0 |
initial elastic tangent |
|
$b |
strain-hardening ratio (ratio between post-yield tangent and initial elastic tangent) |
|
$a1, $a2, $a3, $a4 |
isotropic hardening parameters: (optional, default: no isotropic hardening) |
|
|
$a1 |
isotropic hardening parameter, increase of compression yield envelope as proportion of yield strength after a plastic strain of $a2*($Fy/E0). |
|
$a2 |
isotropic hardening parameter (see explanation under $a1) |
|
$a3 |
isotropic hardening parameter, increase of tension yield envelope as proportion of yield strength after a plastic strain of $a4*($Fy/E0) |
|
$a4 |
isotropic hardening parameter (see explanation under $a3) |

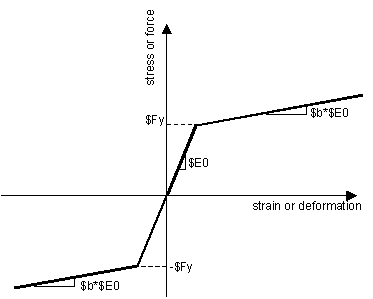

Steel01 Material -- Material Parameters of Monotonic Envelope

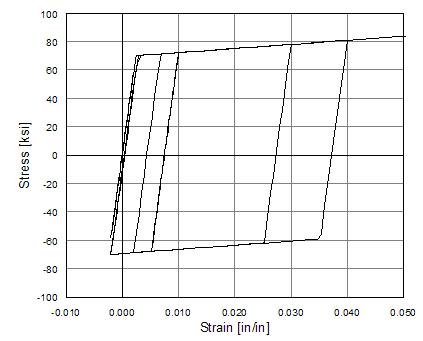

Steel01 Material -- Hysteretic Behavior of Model w/o Isotropic Hardening

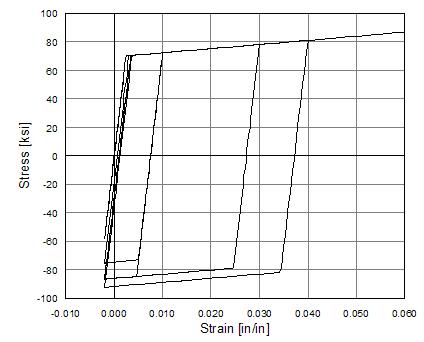

Steel01 Material -- Hysteretic Behavior of Model with Isotropic Hardening in Compression

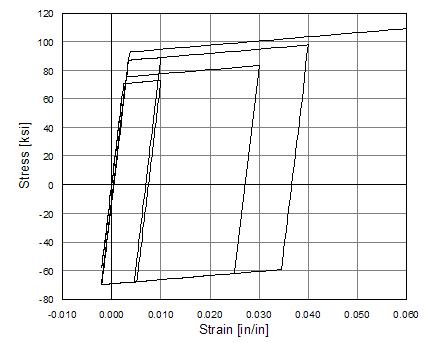

Steel01 Material -- Hysteretic Behavior of Steel_1 Model with Isotropic Hardening in Tension
|
|
|
