A portal frame will be used to demonstrate the OpenSees commands. A structural model will be defined first. Subsequently, a number of static and dynamic analyses will be defined and implemented.

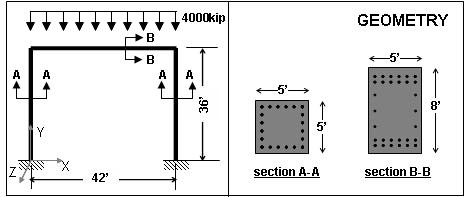

The structural model consists of the planar portal frame shown in the figure below:
The columns and beam will be modeled as elastic elements. At a more advanced level, these elements can be replaced by more refined element models.

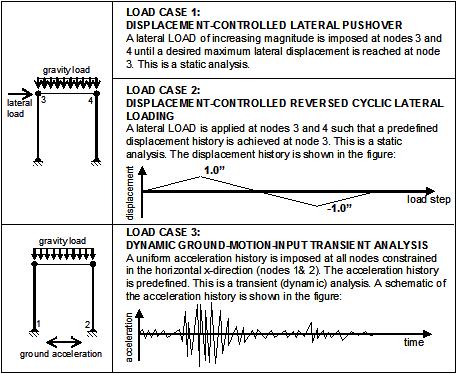

In the analysis phase, the frame will be subjected to three different load cases:
In all cases, however, the frame will be subjected to constant static gravity loads:
|
|
|
