Pushover and Dynamic Analyses of 2-Story Moment Frame with Panel Zones and RBS

From OpenSeesWiki

Jump to: navigation, search

Example posted by: Laura Eads, Stanford University


This example is an extension of the Pushover Analysis of 2-Story Moment Frame and Dynamic Analysis of 2-Story Moment Frame examples which illustrates the explicit modeling of shear distortions in panel zones and uses reduced beam sections (RBS) which are offset from the panel zones. Both pushover and dynamic analyses are performed in this example. The structure is the same 2-story, 1-bay steel moment resisting frame used in the other examples where the nonlinear behavior is represented using the concentrated plasticity concept with rotational springs. The rotational behavior of the plastic regions follows a bilinear hysteretic response based on the Modified Ibarra Krawinkler Deterioration Model (Ibarra et al. 2005, Lignos and Krawinkler 2009, 2010). For this example, all modes of cyclic deterioration are neglected. A leaning column carrying gravity loads is linked to the frame to simulate P-Delta effects.

The files needed to analyze this structure in OpenSees are included here:

Supporting procedure files

The acceleration history for the Canoga Park record

  • NR94cnp.tcl - contains acceleration history in units of g

All files are available in a compressed format here: MRF_PanelZone_example.zip

The rest of this example describes the model and presents the analysis results. The OpenSees model is also compared to an equivalent model built and analyzed using the commercial program SAP2000 (http://www.csiberkeley.com/products_SAP.html).

Contents

Model Description

Figure 1. Schematic representation of concentrated plasticity OpenSees model including explicit modeling of the panel zones. Element number labels and [node number] labels are also shown. A detailed view of a typical panel zone is presented in Figure 2. Note: The springs are zeroLength elements, but their sizes are greatly exaggerated in this figure for clarity.
Figure 2. Schematic representation of a typical panel zone with element number labels and [node number] labels shown. Note: The spring is a zeroLength element, but its size is greatly exaggerated in this figure for clarity.

The 2-story, 1-bay steel moment resisting frame is modeled with elastic beam-column elements connected by zeroLength elements which serve as rotational springs to represent the structure’s nonlinear behavior. The springs follow a bilinear hysteretic response based on the Modified Ibarra Krawinkler Deterioration Model. The panel zones are explicitly modeled with eight elastic beam-column elements and one zeroLength element which serves as rotational spring to represent shear distortions in the panel zone. A leaning column with gravity loads is linked to the frame by truss elements to simulate P-Delta effects. An idealized schematic of the model is presented in Figure 1.

A detailed description of this model is provided in Pushover Analysis of 2-Story Moment Frame. This section merely highlights the important differences in this model, namely the inclusion of panel zones and reduced beam sections (RBS) which are offset from the panel zones.

The units of the model are kips, inches, and seconds.

Panel Zones

The panel zone is the joint region where beams and columns intersect. In this model it consists of the rectangular area of the column web that lies between the flanges of the connecting beam(s). The panel zone deforms primarily in shear due to the opposing moments in the beams and columns. To capture these deformations, the panel zone is explicitly modeled using the approach of Gupta and Krawinkler (1999) as a rectangle composed of eight very stiff elastic beam-column elements with one zeroLength element which serves as rotational spring to represent shear distortions in the panel zone (see Figure 2). At the three corners of the panel zone without a spring, the elements are joined by a simple pin connection which is achieved by using the equalDOF command to constrain both translational degrees of freedom. The eight elastic beam-column elements each have an area of 1,000.0 in2 and a moment of inertia equal to 10,000.0 in4 in order to give them high axial and flexural stiffness, respectively. The elements are defined in elemPanelZone2D.tcl. The spring has a trilinear backbone which is created with the Hysteretic material in rotPanelZone2D.tcl. This procedure also constrains the translational degrees of freedom at the corners of the panel zone. The spring’s backbone curve is derived using the principle of virtual work applied to a deformed configuration of the panel zone (Gupta and Krawinkler 1999).

Reduced Beam Sections (RBS)

Using an RBS which is offset from the beam-column joint ensures that the beam’s plastic hinge forms away from the column and thus protects the column’s integrity. In this model, the decrease in moment of inertia at the RBS is neglected; however, the yield moment at the RBS is calculated based on the reduced section properties. The plastic hinge is modeled by a rotational spring placed at the center of the RBS. An elastic beam-column element is used to connect the spring and the panel zone. Since this element is not part of the spring-elastic element-beam subassembly described in the “Stiffness Modifications to Elastic Frame Elements” section of the Pushover Analysis of 2-Story Moment Frame example, its moment of inertia and stiffness proportional damping coefficient are not modified by an “n” factor.

Application Points for Masses and Loading

Since loads cannot be applied at the center of the beam-column joint, gravity loads are applied at the top node of the panel zone where it meets the column (node xy7 in Figure 2). Both masses and lateral loads are applied at the centerline of the floor level along the right side of the panel zone (node xy05 in Figure 2).

Analysis

Figure 3. Pushover Curve: Comparison OpenSees & SAP2000 Models

Pushover

The pushover analysis is identical to the analysis performed in the Pushover Analysis of 2-Story Moment Frame example where the structure is pushed to 10% roof drift, or 32.4”.

Dynamic

The dynamic analysis is identical to the analysis performed in the Dynamic Analysis of 2-Story Moment Frame example where the structure is subjected to the 1994 Northridge Canoga Park record.

Results

The first and second mode periods of the structure obtained from an eigenvalue analysis are T1 = 0.81 s and T2 = 0.18 s, respectively. These values agree with the SAP2000 model which had periods of T1 = 0.81 s and T2 = 0.20 s.

The periods of this OpenSees model are slightly smaller than the periods of the structure used in Pushover Analysis of 2-Story Moment Frame which had periods of T1 = 0.83 s and T2 = 0.22 s. This is expected because the including the panel zone regions makes the structure stiffer.

Pushover Results

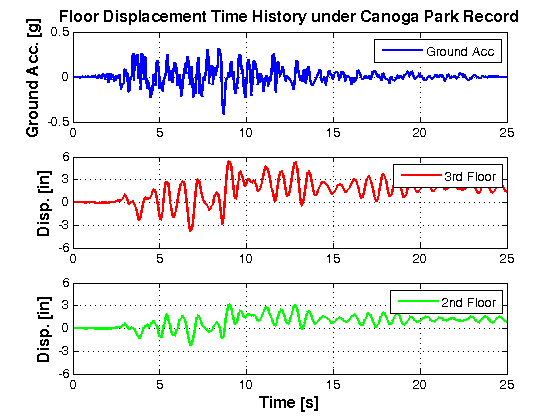

Figure 4. Acceleration and Floor Displacement Histories

A comparison of the pushover results from the OpenSees and SAP2000 models is shown in Figure 3. As demonstrated by this figure, the results are nearly identical.

Dynamic Results

The floor displacement histories from the dynamic analysis are shown in Figure 4. The top graph shows the ground acceleration history while the middle and bottom graphs show the displacement time histories of the 3rd floor (roof) and 2nd floor, respectively

References

  1. Gupta, A., and Krawinkler, H. (1999). "Seismic Demands for Performance Evaluation of Steel Moment Resisting Frame Structures," Technical Report 132, The John A. Blume Earthquake Engineering Research Center, Department of Civil Engineering, Stanford University, Stanford, CA. [electronic version: https://blume.stanford.edu/tech_reports]
  2. Ibarra, L. F., and Krawinkler, H. (2005). “Global collapse of frame structures under seismic excitations,” Technical Report 152, The John A. Blume Earthquake Engineering Research Center, Department of Civil Engineering, Stanford University, Stanford, CA. [electronic version: https://blume.stanford.edu/tech_reports]
  3. Ibarra, L. F., Medina, R. A., and Krawinkler, H. (2005). “Hysteretic models that incorporate strength and stiffness deterioration,” Earthquake Engineering and Structural Dynamics, Vol. 34, 12, pp. 1489-1511.
  4. Lignos, D. G., and Krawinkler, H. (2009). “Sidesway Collapse of Deteriorating Structural Systems under Seismic Excitations,” Technical Report 172, The John A. Blume Earthquake Engineering Research Center, Department of Civil Engineering, Stanford University, Stanford, CA.
  5. Lignos, D. G., and Krawinkler, H. (2011). “Deterioration Modeling of Steel Components in Support of Collapse Prediction of Steel Moment Frames under Earthquake Loading", ASCE, Journal of Structural Engineering, Vol. 137 (11), 1291-1302.
