In this example, the Uniaxial Section of Example 2b is replaced by a fiber section. Inelastic uniaxial materials are introduced in this example, which are assigned to each fiber, or patch of fibers, in the section. |
|

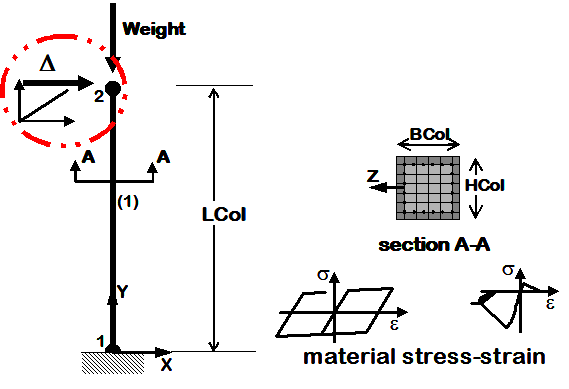

a. Static Pushover
|

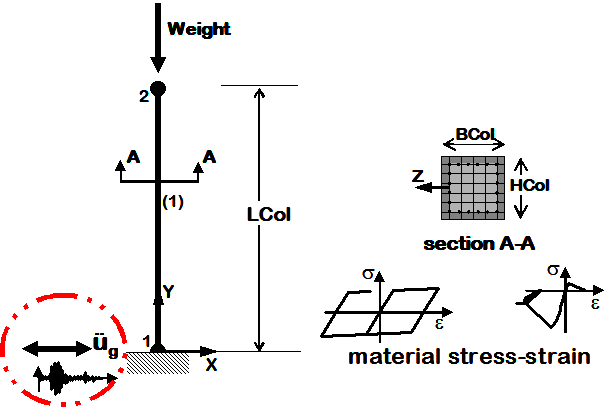

c. Dynamic EQ Ground Motion
|
|
|
In this example the axial and flexural behavior are coupled, a characteristic of the fiber section.
The nonlinear/inelastic behavior of a fiber section is defined by the stress-strain response of the uniaxial materials used to define it.

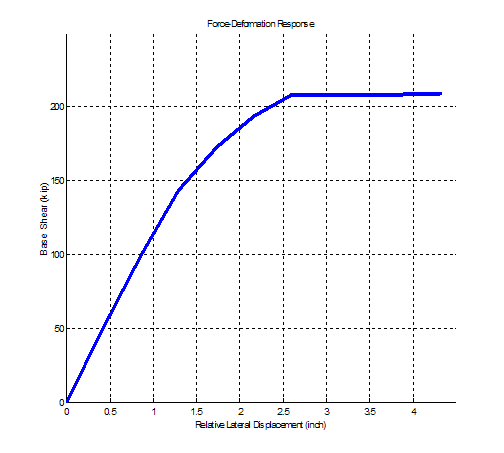

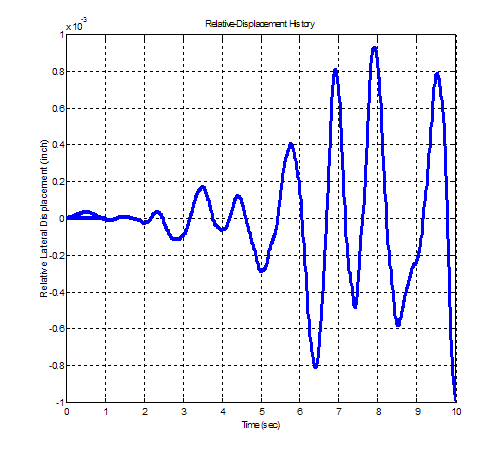

The response curves for this example (obtained from the recorders' files DFree.out RBase.out) are as follows:
Ex2c.Canti2D.InelasticFiberSection.Push.tcl
Ex2c.Canti2D.InelasticFiberSection.EQ.tcl
|
|
|
